Hello again and welcome to another installment of Luthier's
Corner. This month, I want to discuss my most recent custom build,
the third custom Golden Lion model electric guitar.
So here we have my latest build. This is
the third Golden Lion model that I have built, this one
being for my own personal collection, mainly for the purpose
of being a demo model. the way I built it is neck through
body: neck through core is 2 piece mahogany with a 1/4" purpleheart
stringer in the middle. fretboard is purpleheart with 1/8" red
oak binding.
24 frets and a zero fret: zero fret and first
3 frets are stainless steel, the remaining 21 frets are
nickel silver. inlays are pearloid and abalone blocks.
body wings are 7/8" walnut top, 1/8" mahogany center, and
3/4" poplar back. control cavity cover is 1/8" purpleheart.
pickups are Fender style Wide Range neck humbucker, wired
to its own 3 way mini toggle coil select switch and neck
add switch for when using the bridge pickup, middle pickup
is a GFS humbucker sized P-90 single coil, and bridge pickup
is a 14K Fender humbucker, also wired to its own 3 way mini
toggle coil select switch.the
3 pickups are wired to a standard CRL 5 way switch, 500K volume
and 250K tone. Bridge is a Washburn Wonderbar trem. tuners are
Proline self-locking tuners. nut behind the zero fret is bone.
strung with 11's. finished in a subtle cherry burst and cleared
with 5 coats of high gloss poly. weighs 8 lbs, 1 lb of which
is the bridge! that's a heavy block of metal! lol. forgot to
mention that the nut width is 1 3/4", neck thickness is
22mm front to back and a full "C" shape carve. scale
length is 25.5", like a Strat. She plays and sounds
absolutely fantastic, a real joy. To really get a good idea
of what it took to go from raw timber to playable instrument,
check out the following pictures. |
|
Work In Progress

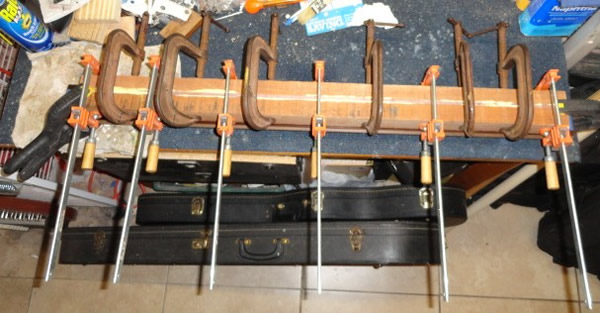

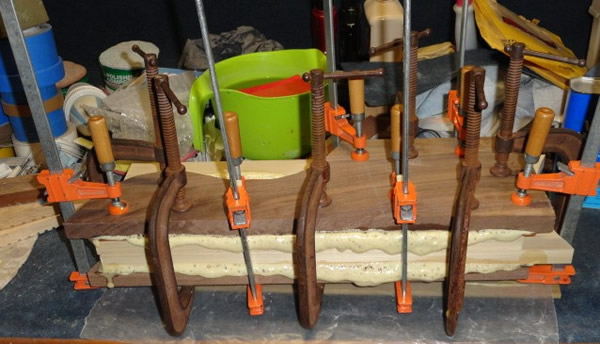

Picture A shows the neck core woods being glued together. Picture

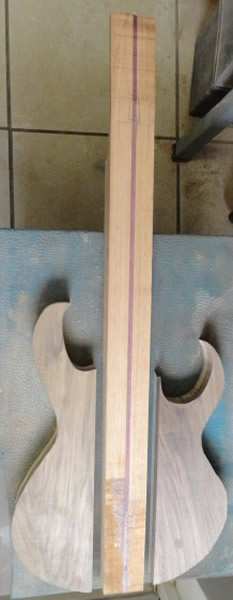

B shows the body wings being glued together. Picture C shows
the cutout body wings and neck through core laid out for a visual prior to

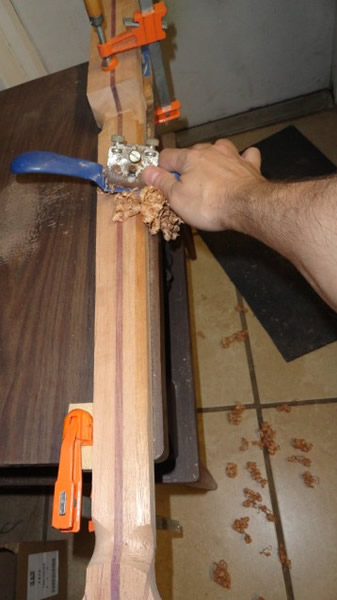

gluing the 3 sections together. Picture D shows me spokeshaving

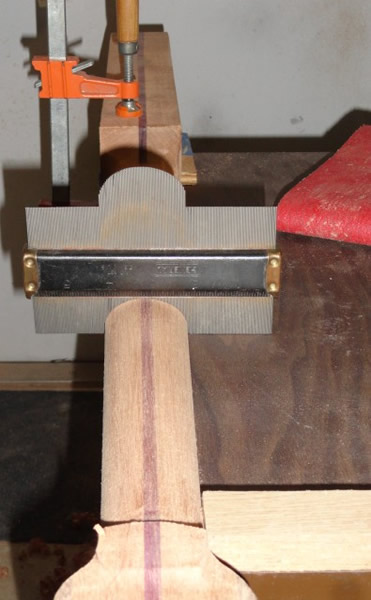

the back of the neck. Picture E shows the neck
carve completed with the radius gauge showing the perfect “C” shape

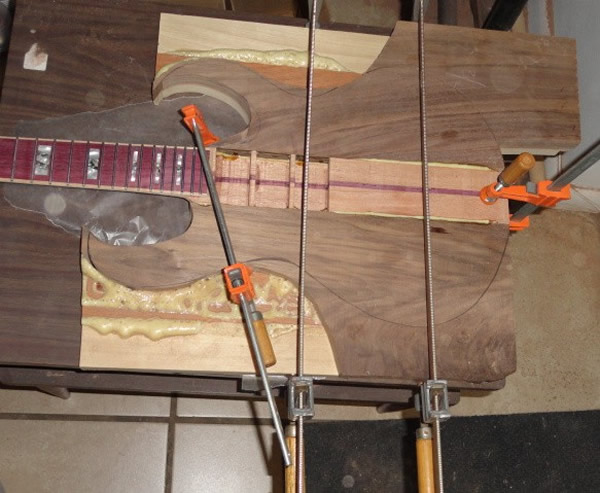

of the back. Picture
F shows the body wings being glued and clamped to the neck through

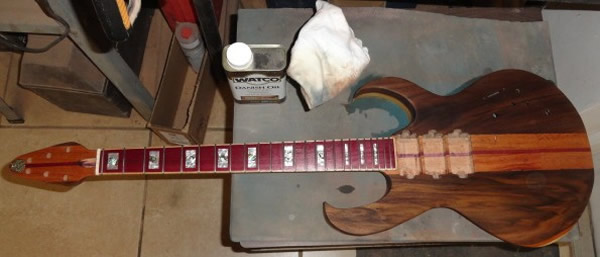

core. Picture G shows the first coat of Danish Oil Stain applied

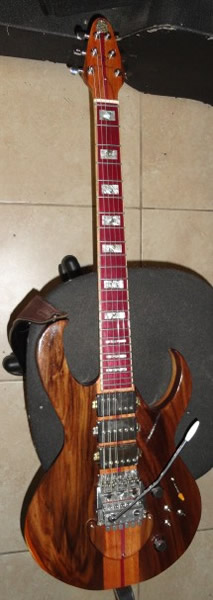

to the guitar, after all the woodworking was completed. Picture H the
completed guitar.
To really get a more in depth look at this guitar, click on the
following link to see fully detailed picture album:
https://www.facebook.com/dguitarsmiami/media_set?set=a.657743064265424.1073741849.100000892103878&type=1
And click this link to see the demo video of the completed guitar: http://youtu.be/18rZBPIZelg
Well, I hope you found this month’s
article informative and enlightening. Once again, thanks for
reading my column and remember no task worth accomplishing
is ever achieved if not pursued with fierce dedication. Believe
in yourself, and make happen that glorious noise called music!
Until next time, remember, there is nothing you can't do if
you set your mind to it! Cheers!!
|
